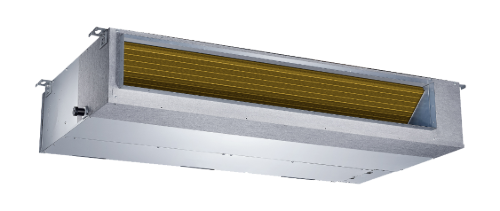

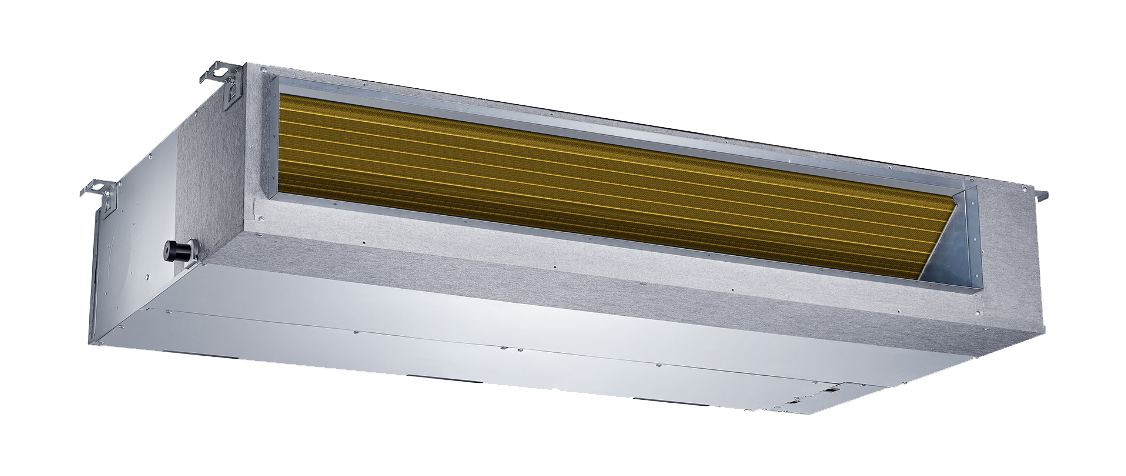

Air conditioners

1. Power Supply:

Indoor: 220-240V, Single Phase, 50Hz

Outdoor: 380-415V, Three Phase, 50Hz

2. Cooling:

Capacity: 48,000 Btu/h

Power Consumption: 4800W

Current: 8.4A

3. Heating:

Capacity: 55,000 Btu/h

Power Consumption: 4500W

Current: 8A

4. Refrigerant:

Type: R32

Shipment Weight: 2.9 kg

5. Refrigerant Piping:

Liquid Line: 9.52 mm (3/8 in)

Gas Line: 15.9 mm (5/8 in)

Maximum Length: 75 Meters

Maximum Elevation Difference: 30 meters

6. Energy Efficiency:

Cooling: A++

Heating: A+

7. Rated Power Input:

6900 W

8. Rated Current:

13 A

9. Control:

Controlled by remote control and central control panel

Dimensions and Weight (Indoor/Outdoor):

10. Dimensions (W x D x H):

Indoor: 1200 x 874 x 300 mm

Outdoor: 952 x 415 x 1333 mm

11. Packing Dimensions:

Indoor: 1405 x 915 x 365 mm

Outdoor: 1095 x 495 x 1480 mm

12. Weight:

Net:

Indoor: 47.6 kg

Outdoor: 103.7 kg

Total:

Internal: 55.8 kg

External: 118.3 kg

13. Quantity per container:

20ft container: Internal 62 / External 22

40ft container: Internal 130 / External 48

40ft High Court (40HQ) container: Internal 149 / External 48
