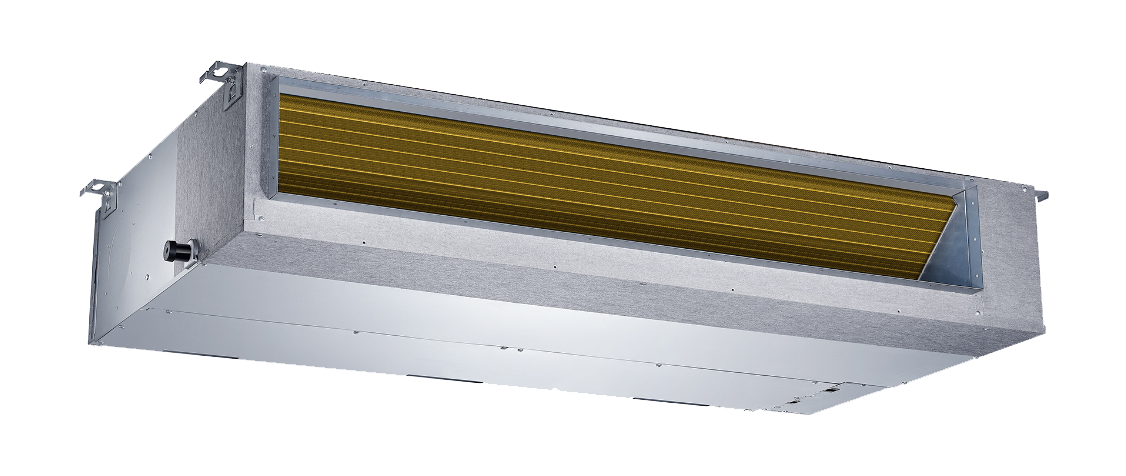

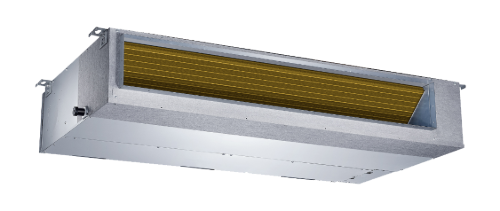

Air conditioners

1. Power Supply:

220-240V, Single Phase, 50Hz

2. Cooling:

Capacity: 36,000 Btu/h

Power Consumption: 4160W

Current: 18.8A

3. Heating:

Capacity: 40,000 Btu/h

Power Consumption: 3200W

Current: 14.5A

4. Refrigerant:

Type: R410A

Shipment Weight: 3.2 kg

5. Refrigerant Piping:

Liquid Line: 9.52 mm (3/8 in)

Gas Line: 15.9 mm (5/8 in)

Maximum Length: 75 m

Maximum Elevation Difference: 30 m

6. Energy Efficiency:

Cooling: A++

Heating: A+

7. Rated Power Input:

5000 W

8. Rated Current:

22.5 A

9. Control:

Controlled by remote control and central control panel

Dimensions and Weight (Indoor/Outdoor):

10. Dimensions (W x D x H):

Indoor: 1360 x 774 x 249 mm

Outdoor: 946 x 410 x 810 mm

11. Packing Dimensions:

Indoor: 1570 x 805 x 330 mm

Outdoor: 1090 x 500 x 885 mm

12. Weight:

Net:

Indoor: 40.5 kg

Outdoor: 67.6 kg

Gross:

Indoor: 48.2 kg

Outdoor: 72.1 kg

13. Quantity per Container (Quantity per container):

20ft container: Internal 49 / External 44

40ft container: Internal 105 / External 96

40ft High Court (40HQ) container: Internal 120 / External 138
