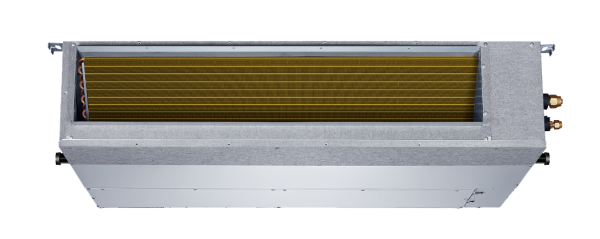

Air conditiong

1. Power Supply:

Indoor: 220-240V, Single Phase, 50Hz

Outdoor: 380-415V, Three Phase, 50Hz

2. Cooling:

Capacity: 53,000 Btu/h

Power Consumption: 6,000W

Current: 10.5A

3. Heating:

Capacity: 62,000 Btu/h

Power Consumption: 5,200W

Current: 8.9A

4. Refrigerant:

Type: R410A

Shipment Weight: 4.7 kg

5. Refrigerant Piping:

Liquid Line: 9.52 mm (3/8 in)

Gas Line: 15.9 mm (5/8 in) (inches)

Maximum Length: 75 meters

Maximum Elevation Difference: 30 meters

6. Energy Efficiency:

Cooling: A+

Heating: A+

7. Rated Power Input:

7500 watts

8. Rated Current:

14 amps

9. Control:

Controlled by remote control and central control panel

Dimensions and Weight (Indoor/Outdoor):

10. Dimensions (Width x Depth x Height):

Indoor: 1200 x 874 x 300 mm

Outdoor: 952 x 415 x 1333 mm

11. Packaging Dimensions:

Indoor: 1405 x 915 x 365 mm

Outdoor: 1095 x 495 x 1480 mm

12. Weight (Weight):

Net:

Inner: 47.4 kg

Outer: 109.9 kg

Gross:

Inner: 56.1 kg

Outer: 123.5 kg

13. Quantity per container:

20ft container: Inner 62 / Outer 22

40ft container: Inner 130 / Outer 48

40ft High Court (40HQ) container: Inner 149 / Outer 48
