Designer: Fabrizio Crisà, with a sleek, minimalist look that aligns seamlessly with cabinetry thanks to an adjustable-depth bracket system (SHIFT 3238) allowing millimetric alignment for both functional and aesthetic perfection
Materials: Available in finishes like black glass, white (Krion®), or stainless steel, incorporating cast‑iron effect aluminum grilles with a locking system for safety and easy dishwasher cleaning
Equipped with a 7 W LED strip, approximately 3,500 K, providing around 250–253 lux brightness
Control Panel: Electronic push-button control offering 3 standard speeds plus 2 boost/intensive speeds (“3S + 2B”)
Filter Alerts: Notifies when filters need cleaning or replacement (common across Haiku series)
Airflow Range:
Min–Max: approx. 155 m³/h to 690 m³/h
Some listings note a broader general range of 300–1000 m³/h (possibly across multiple models or under test conditions)
Noise Levels: Typically 34 dB(A) at low speed up to 51 dB(A) at boost; some sources mention up to 63 dB(A) in specific conditions
Power Absorption: Approx. 277 W
Energy Consumption: Around 50 kWh/year
Energy Efficiency: Rated Class A overall, with high marks for lighting and airflow efficiency
Width: Approx. 89.8–90 cm
Depth: Adjustable (32–38 cm range thanks to SHIFT 3238 system)
Ducting: Standard 150 mm outlet, with a 125 mm adapter included
Minimum Chimney Height Option: Can be installed without the upper chimney for a minimum height of 680 mm for a streamlined look
Recommended Clearance: Min. 50 cm above induction or radiant hobs; 65 cm for gas hobs
Grease Filter: Aluminum filter included, dishwasher-safe, secured with a locking mechanism
Odor Filters: Options include regenerable long-life filters (up to 3 years) or charcoal filters (e.g., model CFC0141529A) for recirculation mode
Incorporates SilentPro / Comfort Silence technology, delivering strong extraction while keeping noise levels low—even on high—so conversations remain undisturbed
Built under EcoFair standards for energy savings and reduced environmental impact

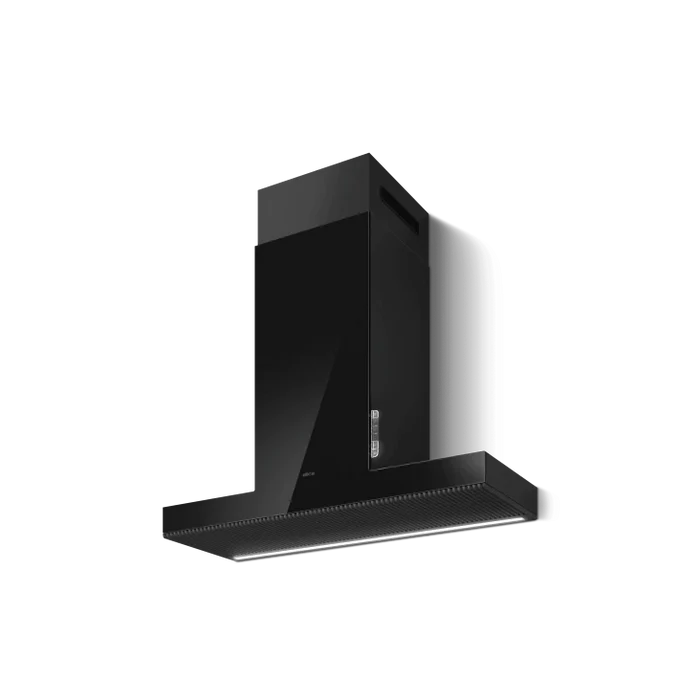

The ELICA HAIKU BL/A/90 wall-mounted hood merges elegant design with flexible installation, strong yet quiet extraction, and eco-friendly performance. Its adjustable depth, filter management, and varied finish options make it ideal for modern kitchens that value both function and aesthetics.
