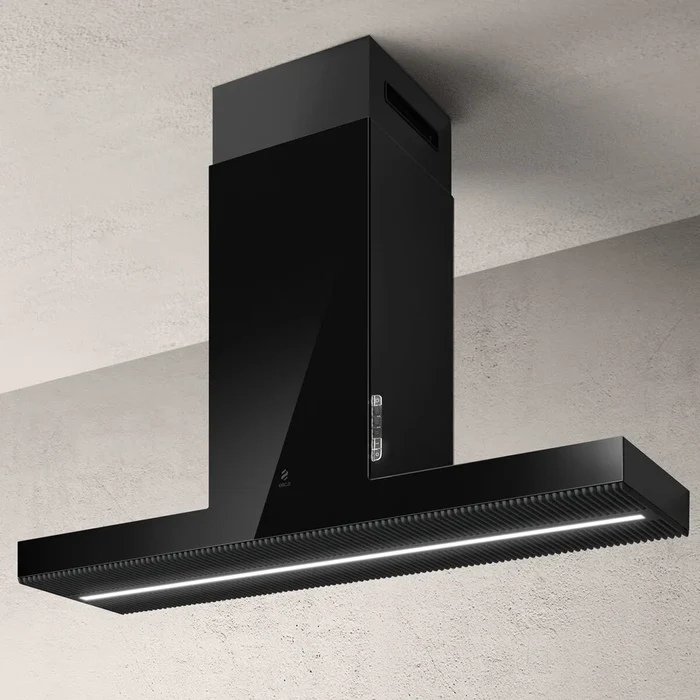

ELICA HAIKU ISLAND BL/A/12 Island Hood 120cm 1000m3/h Black Glass

Main Features & Full Specifications

Design & Aesthetics

• Designer: Crafted by Fabrizio Crisà, this island hood features minimalist, seamless lines with the hood body and chimney perfectly aligned, creating a clean, monolithic silhouette. Available in stainless steel, black glass, white glass/Krion® and porcelain-like finishes

• Materials: Includes special “Long Life” regenerable odor filters and stylish cast-iron effect aluminum grilles that lock into place for safety and ease of maintenance

Lighting

• Integrated LED strip lighting delivering about 7 W, with color temperature around 3500 K, brightness approximately 365 lux

Controls & Indicators

• Control Panel: Electronic push-button panel (3 standard speeds + 2 intensive/boost speeds) labeled as "3S+2B"

• Filter Indicator: Alerts when grease or odor filters need cleaning or replacement

Performance & Airflow

• Airflow Capacity:

  • Normal mode: up to 375 m³/h

  • Intensive (boost) mode: up to 690 m³/h Other sources mention up to 690 m³/h consistently in top/boost mode

• Noise Levels:

  • Range from 34 dB(A) (minimal setting) up to 51 dB(A) in intensive use

Power & Energy

• Absorption Power: Around 277 W

• Energy Efficiency: Rated Class A overall; lighting and dynamic airflow are also rated A, while grease filter efficiency is typically C

• Estimated Annual Consumption: Approximately 50 kWh/year

Air Duct & Installation

• Duct Diameter: 150 mm (6 in), with 125 mm adapter typically included

• Recommended Clearance:

  • Electric/induction stove: at least 50 cm

  • Gas stove: at least 65 cm

• Dimensions:

  • Width: 120 cm

  • Depth: approx. 32 cm (some sources note 32.6 cm)

  • Chimney height varies; typical range: 84–117 cm

Filtration & Maintenance

• Grease Filter: One aluminum grease filter included, dishwasher-safe. Equipped with a safety lock mechanism for secure removal and cleaning

• Odor Filters:

  • Long Life regenerable filter: lasts up to 3 years, washable and can be refreshed in a dishwasher or oven (65 °C then 100 °C for drying)

  • Optional charcoal filters available (model CFC0141529A or CFC0141725A) for recirculating (filter) mode

Quiet Operation

• Comfort Silence / SilentPro technologies deliver quiet performance, making conversation possible even at high extraction levels

Summary Table

Overall Summary

The Elica Haiku Island 120 cm (BL/A/120) combines elegant design with strong performance and efficient, quiet operation. It fits well in modern open-plan kitchens and balances minimalist aesthetics, robust airflow, and easy maintenance.
